Ubo Pro HAT

Estimated ship date June 30th, 2026

This is a detachable and module HAT+ (Hardware Added on Top) that gives your Raspberry Pi a polished GUI to control and monitor your Pi without needing a monitor or keyboard.

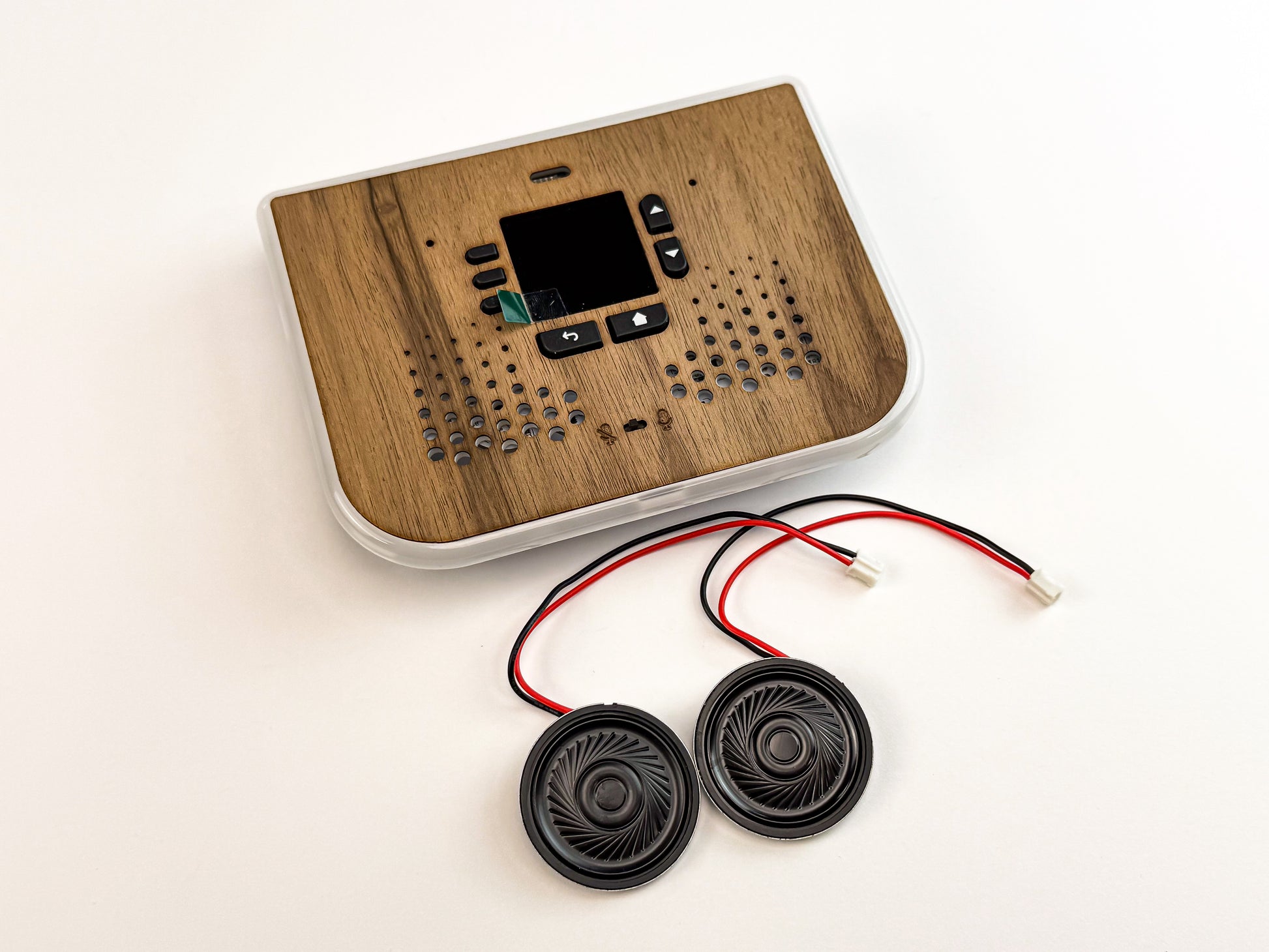

It also includes a continuous RGB rings that consists of 27 addressable LEDs, 2 microphones, 2 speakers (connected via sideboard), Infrared receive sensor (compatible with most off-the-shelf IR remote controls), 4 Infrared transmitters (omni-directional), temperature sensor, and ambient light sensor.

Here's the complete spec:

• Display: 1.54 inch TFT IPS 240x240 pixels resolution
• Kay pad: 7 buttons on a soft touch silicon keypad
• Microphone: Dual stereo microphones capable of recording 48KHz audio, Hardware disconnect switch for microphones
• Speaker: Stereo speakers, up to 48KHz, <0.1% THD with 1Watt per channel
• Audio Line Out: 40mW output power into 16 Ohm at 3.3V, THD -75dB at 20mW, SNR 90dB with 16 Ohm load; jack insertion detection
• LED ring: 27 individually controllable RGB LEDs (SK6812), NeoPixel compatible
• Infrared Communications
• IR receiver: AC coupled response from 20 kHz to 60 kHz, all data formats, 5m range
• IR transmitter: 940 nm, omnidirectional, with high radiant power and speed
• Sensors
• Temperature: ±1 °C accuracy over -25 °C to +100 °C range, (PCT2075 by NXP)
• Ambient light: 0 to120 Kilolux [klx] with resolution down to 0.0036 lx/ct (VEML7700 by Vishay)

This board is best usable with Ubo enclosure that you can either purchase or 3D print with STL files available here:

https://github.com/ubopod/ubo-mechanical

This an open hardware. The schematic and layouts are available on the following GitHub repository:

https://github.com/ubopod/ubo-pcb

Please note that to get the GUI and LED ring working you need to install Ubo app software from this repo:

https://github.com/ubopod/ubo_app
