Base Chassis (Standard)

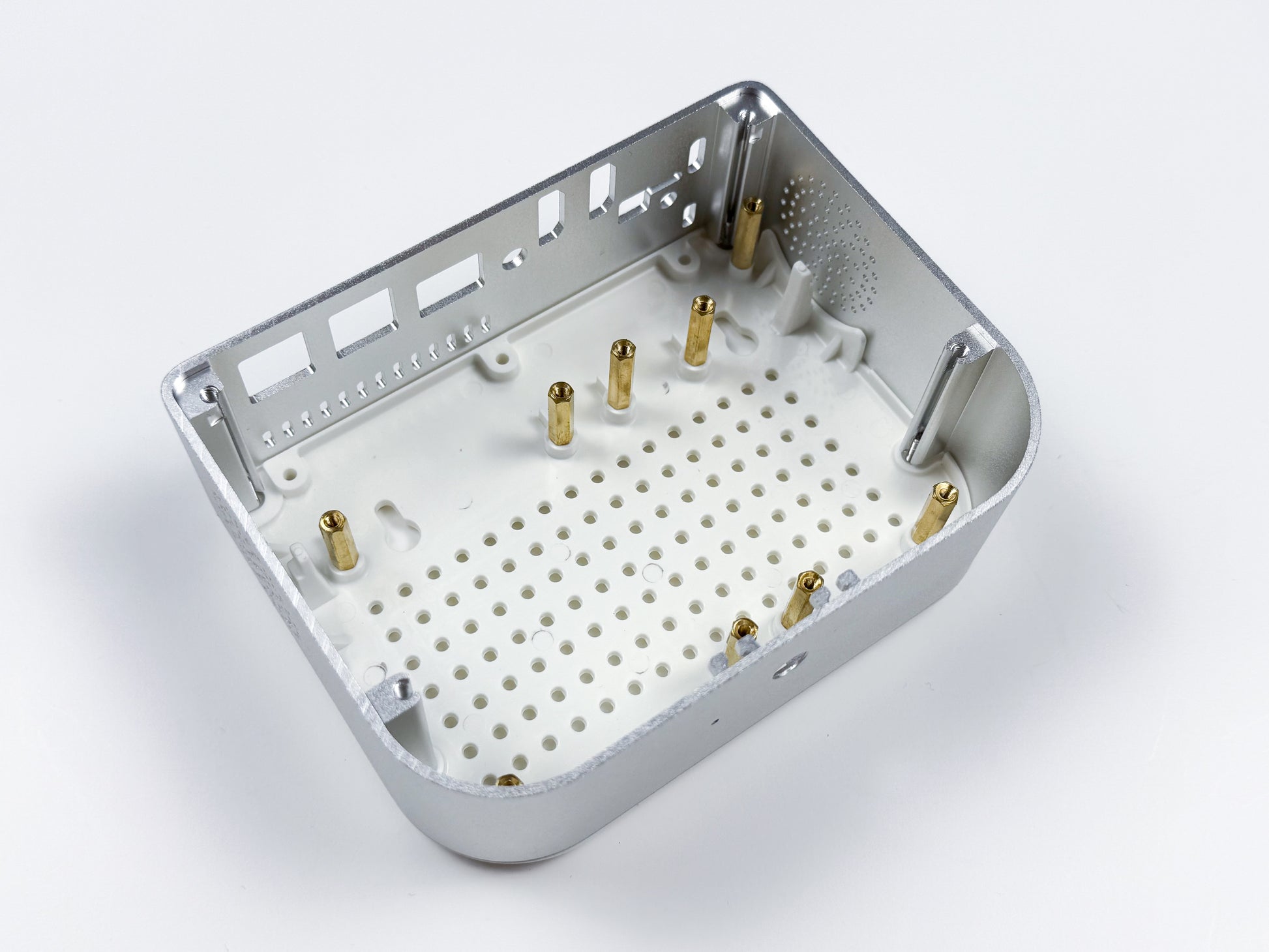

This is the base mounting chassis for Ubo pod and its variants. You can use this in your own DIY design if you want to build your own enclosure.

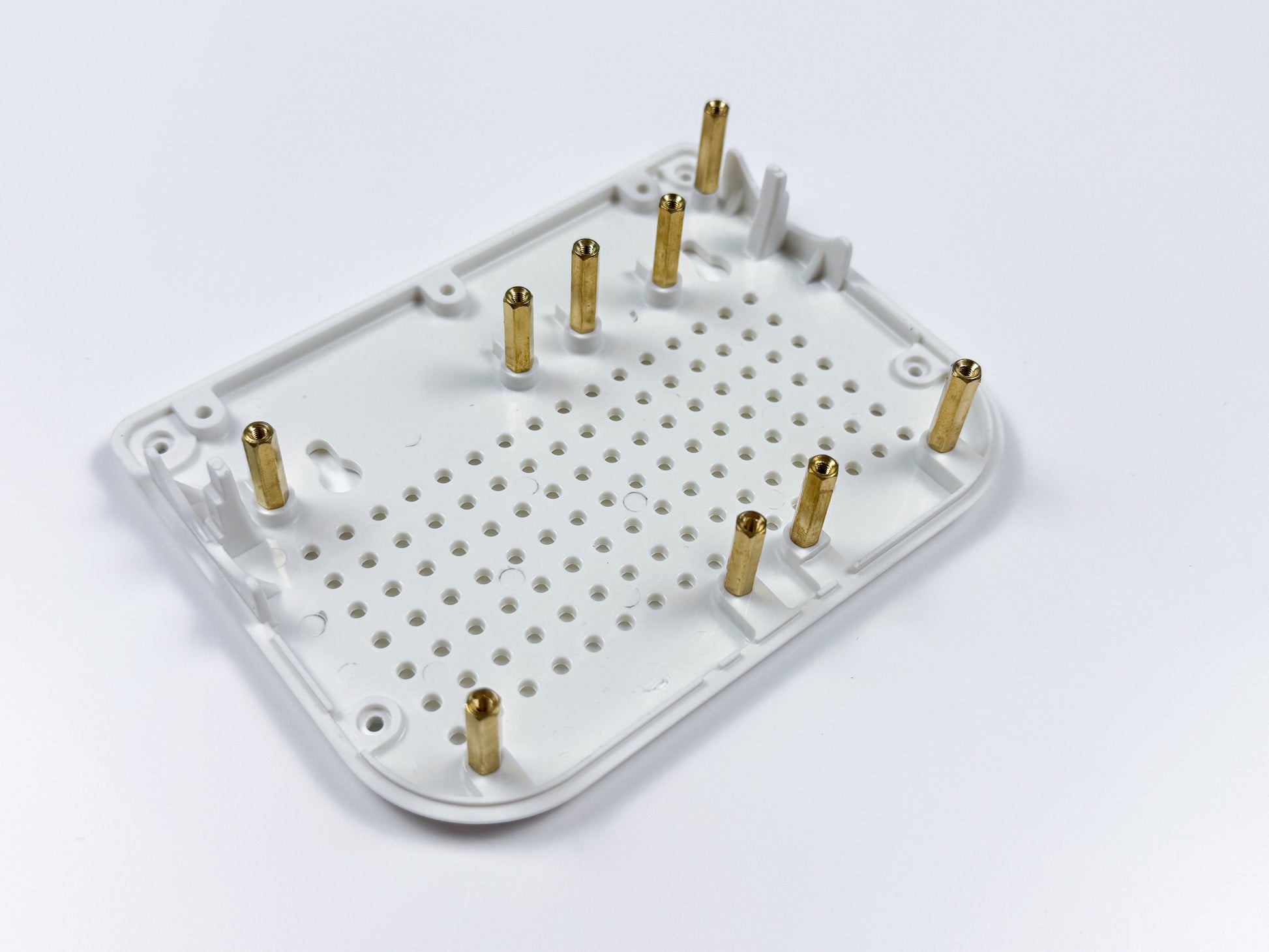

It also includes

• 5 x 19mm M2.5 Hex stand-offs
• 4 x 17mm M2.5 Hex stand-offs

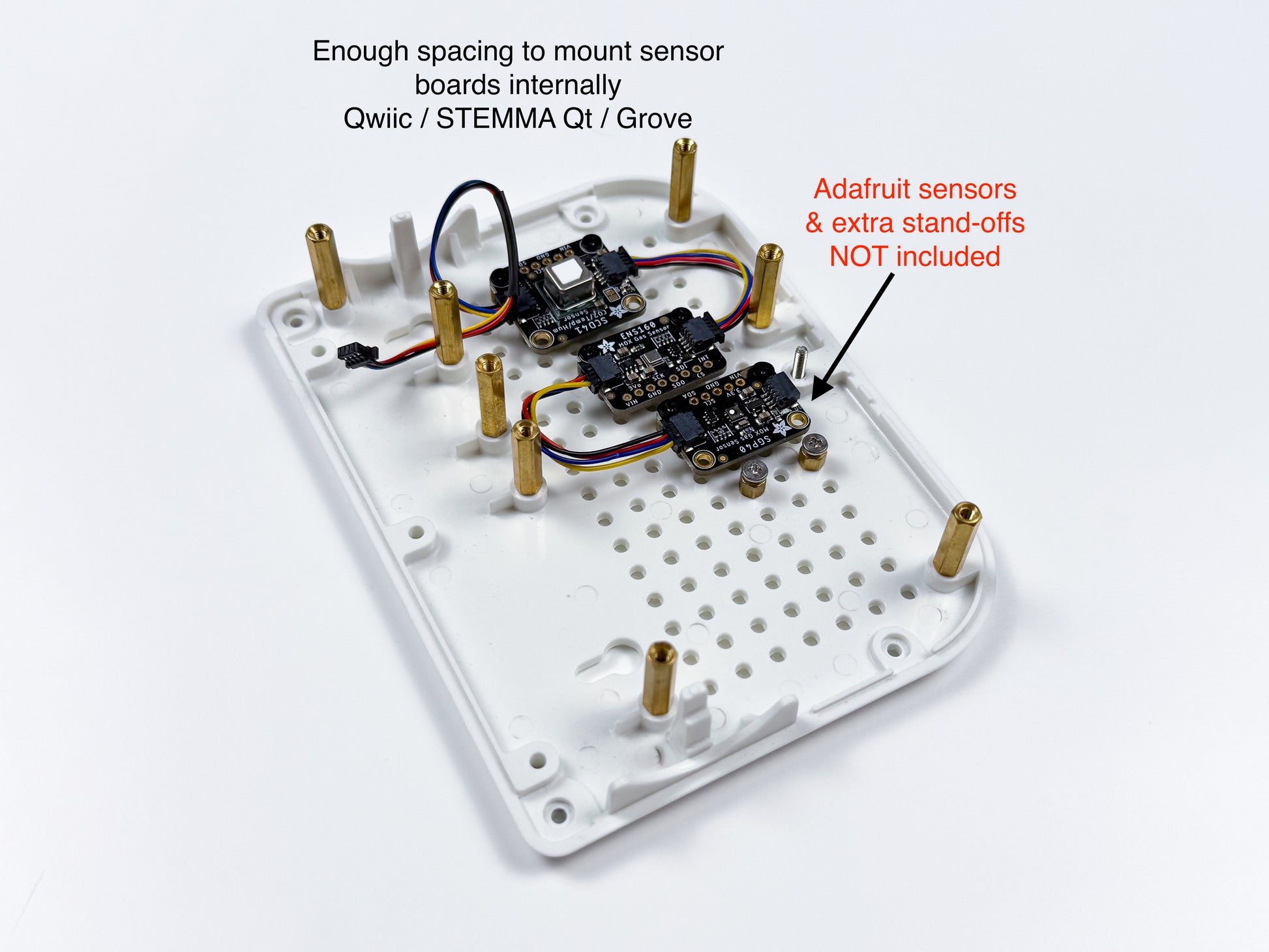

You can optionally mount sensor boards from Adafruit (STEMMA QT), Sparkfun (Qwiic), or SeedStudio (Grove) on the grid mounting holes with small stand-offs and connect them to internally.

The STL file for this part can be found here if you want to 3D print it:

https://github.com/ubopod/ubo-mechanical/tree/main/bottom_cover
